Comtelco PS2.4-SMA-RT-4  Data Antenna
The Comtelco PS2.4-SMA-RT-4 Specialty Data Swivel Style 2dBi SMA RT (Reverse Thread) Portable Antenna covers 2.4 - 2.5 GHz. Length is approximately 4". Note: Main image is a facsimile actual item may look different.
Please Specify Center Frequency in order form comments box.

• PLEASE SEE FIG 5 for ANTENNA IMAGE Above or Below
• Industry Standard SMA Male RT (Reverse Thread) base
• 2.4-2.5 GHz 4" Swivel Rubber Duck Design

• Complete 100 MHz Bandwidth 2dBi Gain

• Imported

• See Complete Specifications Below

• Call for Assistance
• Pay using PayPal: no PayPal account needed

---

NOTE: This antenna has been tuned at the factory for optimum performance. No cutting of the antenna rod should be necessary. For optimum performance at a specific frequency the rod may be moved up or down in the adapter by loosening the set screw. If the rod position is changed the performance should be checked with an VSWR meter.

---

PLEASE SEE OPTIONS AND ACCESSORIES BELOW FOR RELATED ITEMS
INCLUDE CENTER FREQUENCY / FREQUENCY RANGE IN ORDER FORM COMMENTS BOX

---



                   When ordering above Antennas please list your center frequency in order form comments box.

---

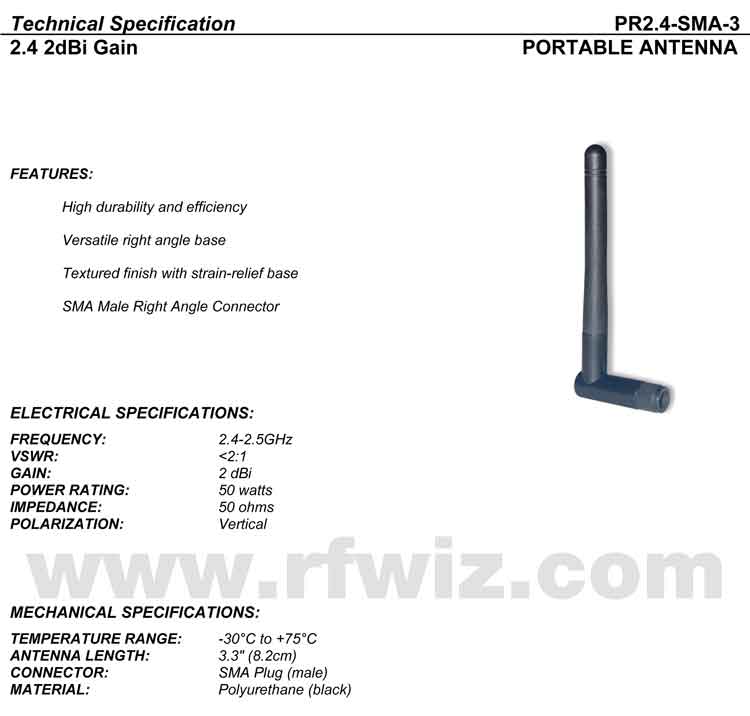

NOTE: Specifications below are for a Similar Type

---

NOTE: Features, prices and specifications subject to change without notice. Technical Specifications/Data Sheet may be for similar antenna type or model number and can change without notice. Not responsible for typographical or technical errors, information presented is for general evaluation only.

---

Comtelco PS2.4-SMA-RT-4 - 2.4-2.5 GHz 4" Specialty Data Swivel 2dBi SMA RT Portable Antenna

• Brand: Comtelco Antenna
• Product Code: PS2.4-SMA-RT-4
• Availability: Comtelco Specialty Item - May require factory drop ship (Allow 4-6 weeks, typically less) ...

• $22.00
