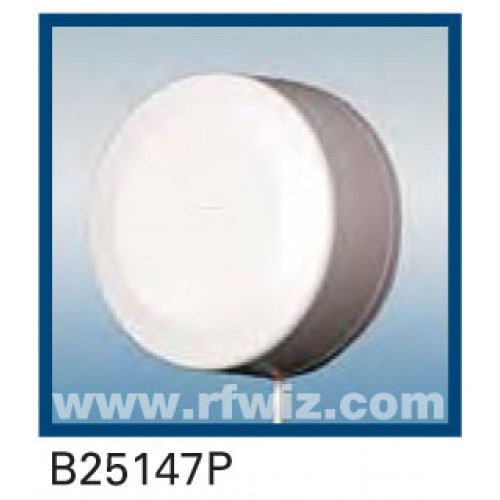

Comtelco B25147P Round Panel Antenna
The Comtelco B25147P 55° Vertical and 50° Horizontal Beam Width Round Panel Base Station is a UHF 7.5 dBi Gain with 18dB Front to Back Rejection Antenna for 1.35-1.45 GHz and is an approximately 4 1/4" Round and 1 1/2" Deep Panel. It provides highly focused area performance in an easy to manage package with very low wind loading and wide bandwidth. Note: Uses a Thermostat Type Wall Plate Mount. Please Specify Center Frequency on order.

• All B25 Series Panels are 1 1/2" Deep
• Includes a 12" Teflon® Pigtail w/N-Female Connector
• Wide Bandwidth 1.35-1.45 GHz @ VSWR <2.0:1
• Vertical Beamwidth 55° & Horizontal Beamwidth 50°
• Includes Thermostat Type Wall Plate Mount
• 125 MPH wind survival
• 100 Watt power rating

• Wind Load is 9.5 lbs.

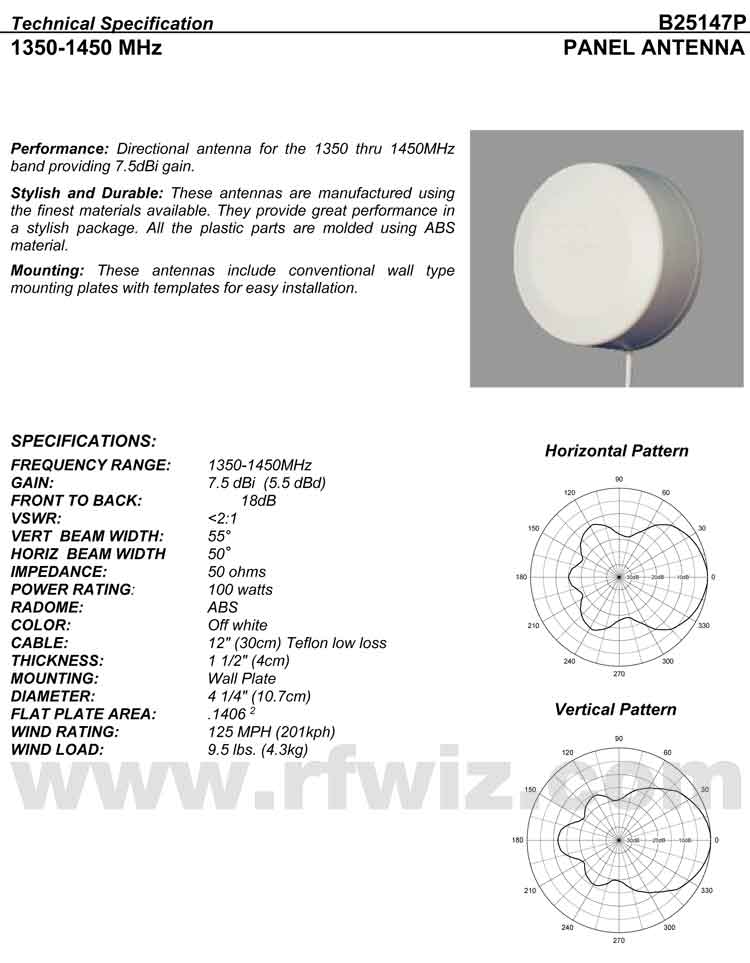

• Full Specifications Below

• Call for Assistance
• Pay using PayPal: no PayPal account needed

---

NOTE: MOUNTING HARDWARE INCLUDED
PLEASE SEE OPTIONS AND ACCESSORIES BELOW FOR RELATED ITEMS

---

---

---

---

NOTE: Features, prices and specifications subject to change without notice. Technical Specifications/Data Sheet may be for similar antenna type or model number and can change without notice. Not responsible for typographical or technical errors, information presented is for general evaluation only.

---

Comtelco B25147P - UHF 1.35-1.45 GHz 7.5 dBi Gain 18dB F/B 4.25" 55°V 50°H Round Panel Base Antenna

• Brand: Comtelco Antenna
• Product Code: B25147P
• Availability: Comtelco Factory build & ship on order - Allow 4-6 weeks ..

• $44.00
