Maxon's TJ-3400UM Job-Site Portable Radio is NEW! The Maxon TJ-3400UM Series 56 Ch 2 Watt Job-Site Portable Radio banner with model and frequency specifications

Information and specifications page for the Maxon America Inc. TP-5416

Options and Accessories: Please scroll down to view related items.

TJ-3400UM 2W UHF 450-470 MHz

The TJ-3400UM Radios are durable, lightweight, and easy to use. These versatile radios are pre-programmed to the most common commercial frequencies to provide efficient operation for uses in Construction, Education, Manufacturing, Hospitality, Property Management, and many other applications.

Compander Circuitry allows for operation with CLS Series.
Interoperability with other manufactures allows you to upgrade in power and features and still be compatible with your existing fleet of radios.
Clear-to-talk (CTT) technology prevents missed communications.
This provides a sequence of tones indicating the radio is ready for transmitting.
Same 2-Pin audio connector as used in CLS Series.
All existing accessories in your fleet are compatible with the TJ-3400UM.

Pricing Includes: Radio • Antenna (TJA-341/342) • Battery (TJA-1800LI) • Charger • Belt Clip
Note: Radio sold as a complete package

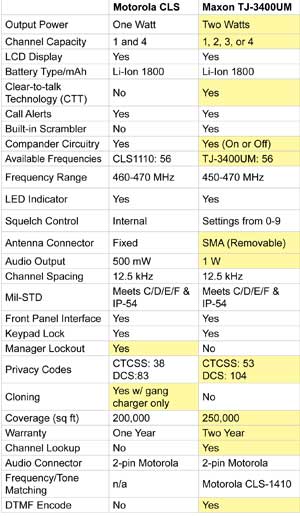

Maxon's TJ-3400UM 56 Ch 2 Watt Job-Site Portable Radios provide reliable communications for greater safety and utility The advantages of the TJ-3400UM vs the Motorol CLS in easy chart form Maxon's 2 year warranty and FCC and Industry Canada Certification logos certifies that the electromagnetic interference, safety, manufacture and other quality parameters have been met by the Maxon TJ-3400UM

Features:

Sold Out - OUT OF STOCK - NO LONGER AVAILABLE
TJ-3000 Series User Manual
TJ-3400UM User Manual Addendum
Maxon's Complete Product Catalog.pdf
Choice of 1, 2, 3, or 4 Channels
2 Watts Power Output
Coverage (sq ft) 250,000
Choice of 56 Business Exclusive Frequencies
LCD Display with Backlight
Call Alert
Roger Beep
Voice Inversion Scramble
Power Save
Privacy Codes (53 CTCSS/104 DCS)
VOX (Voice Operated Transmit)
Scan / Adjustable Squelch Settings from 0-9
1 Watt Audio Output
Rechargable Battery (1800 mAh Li-Ion)
Built to Mil-Std 810F and IP-54 Standards
Pre-programmed (Job-Site Itinerate Frequencies)
User Selectable CTCSS/DCS Codes
Fully Compatible with Motorola® CLS Series
Two Year Warranty
Call for Assistance
Pay using PayPal: no PayPal account needed

TJ-3400UM Job-Site portable radios can grealty improve management and safety by extending communication range of personel

TJ-3400UM Job-Site Full Featured Handheld Radios Specifications listed below


General Specifications
Parameter:	Maxon UHF TJ-3400UM
Frequency Range	450-470 MHz
Approvals	099TJ-3400
Digital	NA
Channels	Choice of 1, 2, 3, or 4 Channels using 56 Business Exclusive Frequencies (Pre-Programmed)
Channel Spacing	12.5 kHz per channel
PLL Stepping	2.5/6.25 kHz
Channel Spread	20 Mhz
Frequency Stability	± 2.5 PPM (-30° to +60° C)
Operating Temperature	-22° to +140° F (-30° to + 60° C)
Storage Temperature	-40° to +185° F (-40° to + 85° C)
Operating Voltage	3.7V DC
Battery Drain mAh	Tx 1200, Rx 300, Stby 60
Battery Capacity	1800 mAh Li-Ion
Battery Life (Hours)	14 hr @90/5/5 duty cycle with battery save
Operating Rating	90/5/5 duty cycle
Dimensions [LWD]	3.9 x 2 x 1” (99 x 51 x 25 mm)
Weight (W/ Battery)	5.3 oz. (151 g.) w/battery
Charge Time Estimate	3-4 Hours
IC Certification Number	9680A-TJ3400U

Receiver Specifications
Parameter:	Maxon UHF TJ-3400UM
Sensitivity (Analog)	.28uV 12dB SINAD
Squelch Sensitivity	.25uV 12dB SINAD
Selectivity	60dB
Intermodulation	NA
FM Hum and Noise	40dB
Audio Output Power	1 Watt across 16-ohm load
Audio Distortion	Less than 5% at rated output
Audio Response	+1, -3dB from 6dB per octave pre-emphasis and characteristic 300 ~ 3000 Hz
Spurious Emission	<70dB
Input Impedance	50 ohms

Transmitter Specifications
Parameter:	Maxon UHF TJ-3400UM
RF Power Output.	2 Watt
FM Modulation	11K0F3E (12.5 kHz), 16K0F3E (25 kHz)
Frequency Stability	± 2.5 ppm (-30° to 60° C)
Conducted/Radiated Emission	NA
Modulation Limiting	±2.5 kHz (12.5 kHz), ±5.0 kHz (25 kHz)
FM Noise	40dB (12.5 kHz), 45dB (25 kHz)
Adjacent Channel Power	NA
Audio Distortion	5% max w/1 kHz modulation
Audio Response	+1, -3dB from 6dB per octave pre-emphasis and characteristic 300 ~ 3000 Hz
Digital Protocol	NA
Output Impedance	50 ohms

NOTE: Some features indicated by specifications listed are prohibited by FCC rule and are not available on models sold in the U.S. or its territories. Note: Features and specifications subject to change without notice.
